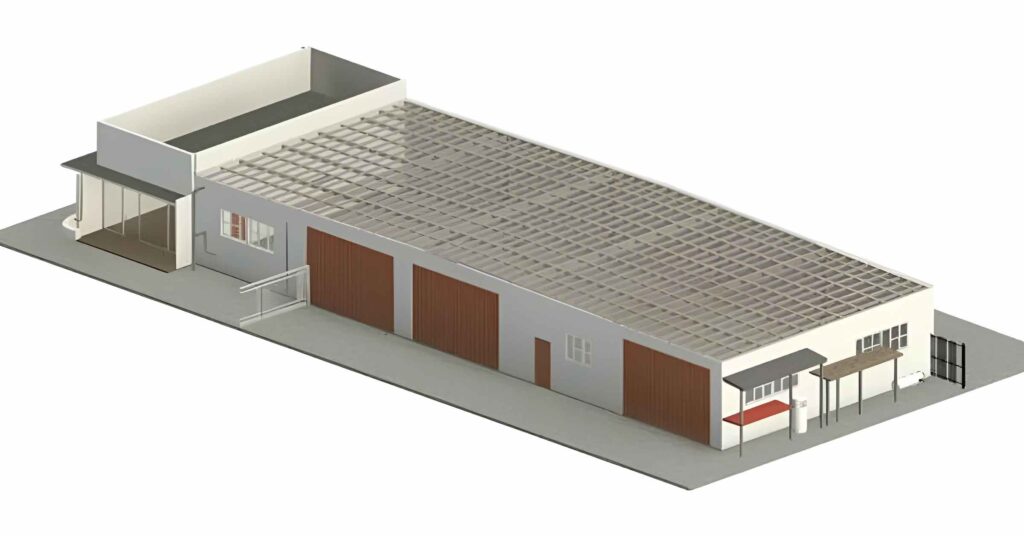

Introduction
Rendering performance remains a persistent challenge in building information modelling (BIM)-driven visualisation workflows. This is the case even for experienced professionals working with carefully developed architectural models. Hidden inefficiencies often accumulate throughout the modelling process. It strains rendering engines and increases hardware requirements during visualisation.
Many of these issues stem from workflows that prioritise documentation over visual performance. Systematic optimisation strategies help architects and designers simplify model data and reduce computational data. It also allows them to improve render speed while maintaining realism and the original design intent.
Why BIM Models Often Struggle in Rendering Pipelines
Overly detailed parametric objects often carry more geometry than visualisation workflows need. Decorative bolts and hidden assemblies may appear in the model even though they never appear in the final render. That extra detail increases polygon counts and pushes rendering engines to process more information than necessary.
Excess metadata in IBM geometry also adds computational weight, which slows performance across rendering engines. These inefficiencies explain broader industry outcomes, as a study revealed that only 45% of construction companies in China reported positive return on investment from BIM adoption.
Another challenge involves the gap between documentation and visualisation models. Models built for coordination emphasise precision and data richness. Those priorities rarely align with the needs of 3D Rendering workflows, which value lighter geometry. As a result, highly accurate BIM models are not always render-ready, and teams need to remove excess data and rebuild materials.
Common Rendering Challenges in BIM Workflows
Slow viewport navigation and delayed scene loading frequently signal deeper issues within the model. As projects grow, layers of geometry and linked data accumulate and strain performance. Production schedules can stretch when scenes remain poorly optimised or overloaded with unnecessary detail.
Even with simpler interfaces, designers often rely on trial-and-error methods to find the right tools for specific tasks. Coordination issues in linked models can add difficulty, as inconsistencies increase processing demands and affect rendering stability.
How Architects and Designers Can Achieve Faster Render Times
Geometry choices and data management influence the load a renderer must handle. Applying optimisation practices throughout the workflow keeps models lighter and helps visualisation tools work faster and more smoothly.
1. Audit Model Complexity Before Rendering
Effective optimisation starts with measurement rather than assumptions. Rendering slowdowns often remain hidden until teams examine model performance closely. A structured audit helps architects and designers determine which model elements consume the most processing resources and slow rendering workflows.
Large health care developments highlight why this step matters. The Stavanger University Hospital project covers 200,000 square meters and presented challenges involving overview and execution. It relied on advanced BIM and digital project management systems to coordinate building data across teams and organisations. Careful model oversight maintained efficiency throughout design and construction despite the project’s complexity.
Polygon density and overall object counts reveal how demanding a scene becomes for a rendering engine. When those numbers are high, rendering engines must process more geometry than necessary. Performance analysis tools reveal components that add unnecessary computational load. With those elements identified, teams can improve efficiency without affecting design accuracy.
2. Replace High-Detail BIM Families With Render Proxies
Manufacturer components frequently contain excessive geometry created for fabrication accuracy, which increases rendering demands. For example, a manufacturer’s office chair render might include screw and internal mechanisms that add thousands of polygons. Proxy workflows address this challenge by preserving visual quality while dramatically reducing computational load through simplified geometry.
This approach resembles how headless WordPress operates on a decoupled architecture. It separates backend functionality from a frontend presentation, much like separating BIM Modeling intelligence from visualisation geometry. Designers can swap heavy families with lightweight assets while keeping the original data-rich elements for documentation. Proxy objects for furniture and fixtures further improve navigation speed and rendering performance without compromising visual realism.
3. Optimise Materials and Texture Workflows
Material inefficiencies extend render times more than geometric complexity. Large BIM projects multiply materials quickly as teams add elements across disciplines and linked models. For example, a hospital model might contain dozens of nearly identical “white paint” materials created separately by architectural or interior teams. That buildup makes scenes heavier for rendering engines to process.
Consolidating duplicate materials across linked files can reduce unnecessary memory usage and prevent rendering conflicts that slow processing. Establishing standardised naming conventions also improves asset organisation. Consistent labels make materials easier to locate and reuse across multiple scenes.
4. Use AI and Automation Tools to Optimise BIM Models for Rendering
Artificial intelligence (AI)-assistent workflows enable professionals to identify inefficiencies that manual audits often overlook, introducing a more proactive approach to BIM optimisation. Industry adoption continues to accelerate, with studies showing that 75% of knowledge workers use AI tools daily. This reflects growing trust in intelligent automation across technical workflows.
AI tools can analyse geometry and overall scene complexity before rendering begins. For example, a large office model might contain hundreds of identical furniture pieces that inflate polygon counts. AI-driven analysis can flag those elements and recommend alternatives. As a result, teams can reduce trial-and-error adjustments and focus more on design refinement.
5. Optimise Geometry Export Settings
Export settings influence how rendering engines interpret BIM geometry. Small configuration choices can affect performance and visual accuracy. For example, exporting a curved handrail or facade panel with overly dense tessellation creates thousands of unnecessary polygons. These extra details increase processing demands without improving image quality.
Users can mitigate these issues by adjusting tessellation levels during export to control geometric detail appropriately. Instancing also improves efficiency when repeated elements appear across the model. Shared geometry reduces memory consumption and allows the renderer to process scenes faster.
6. Control Lighting and Environment Complexity
Lighting calculations significantly influence render duration, particularly as scene complexity increases. The square of the number of scene elements directly impacts calculation time. This dependence makes large or highly detailed environments increasingly time-consuming to process. Controlled lighting setups reduce render noise while maintaining realistic visual results and predictable performance.
Fewer light sources usually lead to more efficient scenes. Extra lights trigger additional calculations that rarely improve the final image. High-dynamic-range image environments often provide balanced illumination without high computational cost. Testing lighting setups in smaller regions before full render allows teams to identify inefficiencies early and refine settings more efficiently.
Building an Optimisation Workflow Into BIM Standards
Embedding optimisation into BIM standards ensures rendering efficiency becomes part of daily workflows. Clear guidelines maintain performance consistency across projects and visualisation stages.
- Define model performance benchmarks: Establish acceptable limits for polygon counts and material complexity across disciplines.
- Standardise visualisation-ready families: Create approved libraries of optimised components and proxy assets for consistent use.
- Implement material and naming conventions: Maintain consistent standards to reduce duplication and simplify asset management.
- Schedule regular model audits: Integrate performance reviews at key milestones to detect inefficiencies early.
- Control linked model visibility: Define rules for loading only necessary elements during visualisation workflows.
Optimisation as the Foundation of Reliable BIM Rendering
High-quality renders depend less on powerful hardware and more on how efficiently the BIM model is built. Teams that treat optimisation as a routine part of modelling achieve faster render times and more consistent visual results.
